Oatomflame - F Series Pure Oxygen Fuel Industrial Burners
Product Feature

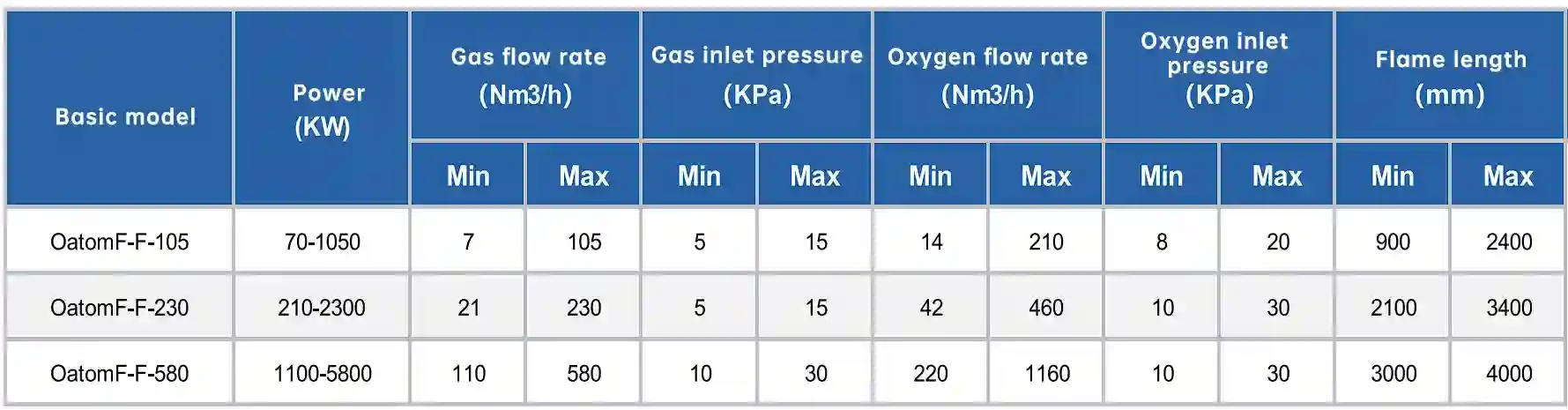

Power range: 70KW - 5800KW;
Customizable and can be used in industries such as glass fiber kilns and glass containers;
High thermal radiation combustion efficiency;
High flame temperature and the flame length is adjustable;
The maximum adjustment ratio of the burner can reach 10:1;
Low CO and NOx emissions and low flue gas emissions.
Application
The Oatomflame - F pure oxygen burner is mainly applied in glass kilns and high - temperature kilns. This burner can enhance the fuel's combustion capacity to improve the efficiency of the kiln. The burner consists of two parts: the main burner gun and the burner nozzle brick. The burner gun is fixed to the burner installation sleeve through a quick clamp, and the installation sleeve is fixed to the burner nozzle brick by a T - bolt. The quick clamp enables the quick installation and removal of the burner gun. The burner is equipped with an oxygen adjustment screw, which can adjust the flame length appropriately according to the width and length of the kiln. This burner has the characteristics of long flame length, wide coverage area, and quick installation. In addition, it has the advantages of improving production efficiency, saving energy, and reducing emissions.
